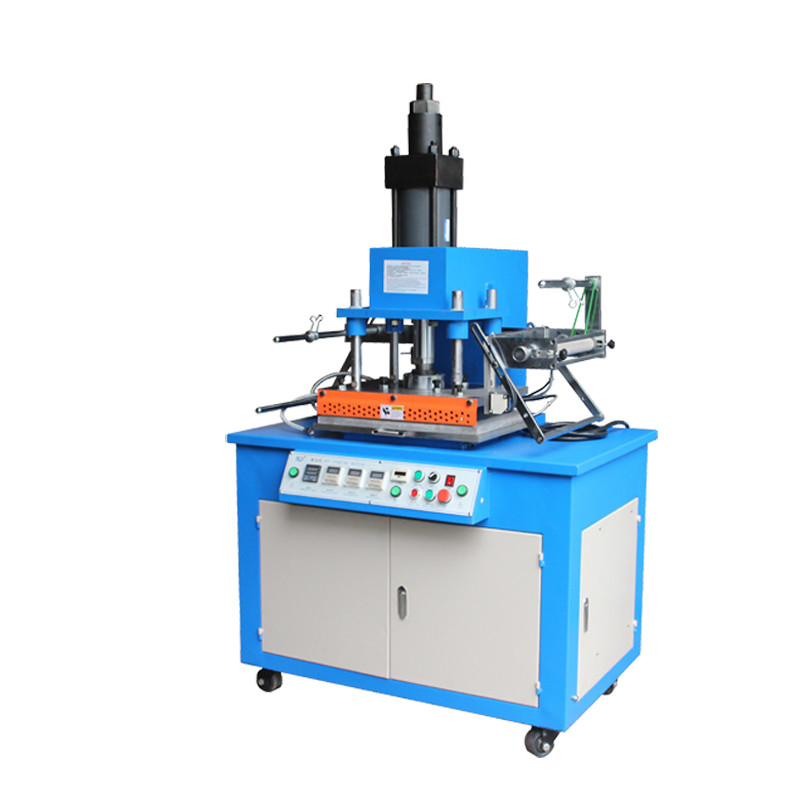

Heavy Duty Hydraulic Leather Hot Foil Stamping Machine
革製のホットフォイルスタンプ機
,水力製革ホットホイルスタンプ機
Heavy Duty Hydraulic Leather Hot Foil Stamping Machine
Descripe:
This machine the fuselage adopt stainless steel material, equipment parts are premium brands for the domestic and abroad, stable performance, long service life;Adopt novel design idea and advanced manufacturing technology, which makes structure of machine more reasonable and perfect.
Features:
1.High pressure suit for big size hot stamping

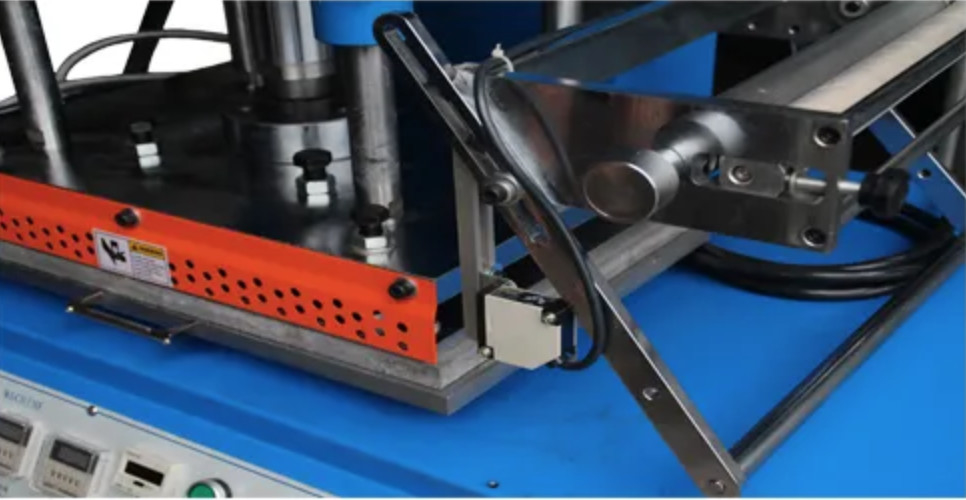

2.Automatic foil feeding
3.Hydraulic

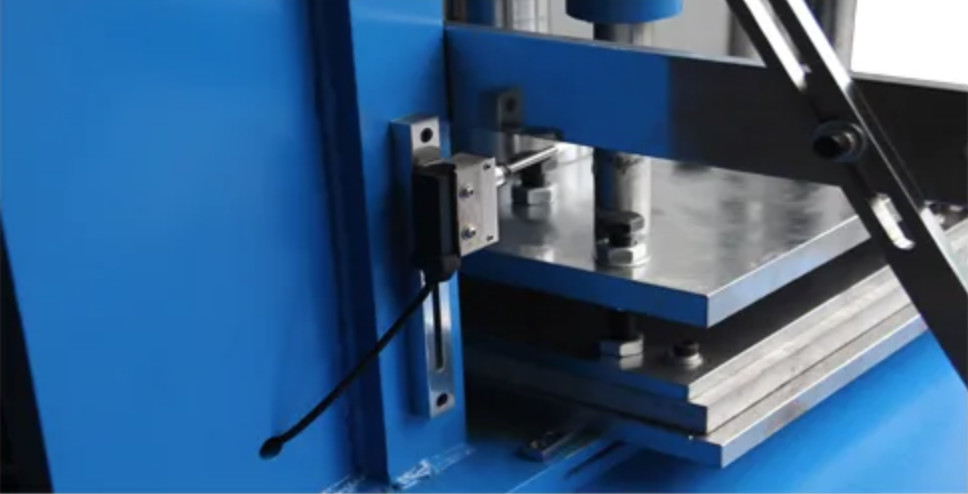

4.Photocell protection
5.embossing and relief effect
Parameters:
|
Model
|
HGP-300
|
HGP-350
|
|
Gilding area
|
300*400mm
|
350*500mm
|
|
Bronzing pressure
|
3.4T
|
15T
|
|
Gilding speed
|
8times/min
|
|
|
weight
|
400KG
|
500KG
|
|
Voltage
|
380v 50-60hz
|
|
|
Machine size
|
870*710*1640mm
|
1020*760*1820mm
|
|
Power
|
2KW
|
2.5kw
|
|
Pressure pressure
|
1-7mpa
|
1-10mpa
|
Company Profile:
Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.
With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. Our high quality cutting rules feature good hardness and perfect flexibility and we also have various kinds of creasing rules, perforating rules, wave rules, cut-crease rules, zipper rules and glue flap rules.
FAQ
We are based in Shanghai, China, start from 2008, sell to South America ,South Asia ,Mid East,Eastern Europe(,Southeast Asia,North America,Southern Europe. There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine
4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially die cutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.
5. what services can we provide?
Delivery Terms: FOB, CFR, CIF,EXW,CIP,Express Delivery；
Payment Currency: USD,EUR,JPY,CAD
Payment Type: T/T,L/C,MoneyGram,Credit Card;
Language Spoken:English,Chinese
-
